[Product Manual]：https://www.lab-wash.com//wd/upload/day_20251105_71347/LBT-M5590E887AAE58AA8E7BCA9E6B0B4E78E87E6A087E8AEB0E4BBAAE58D95E9A1B5en.pdf

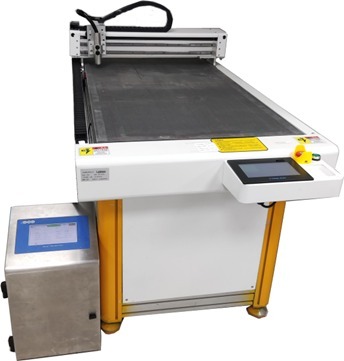

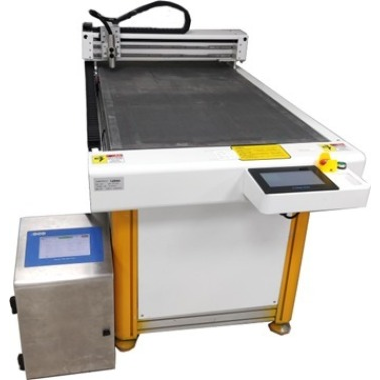

[Description]：The LBT-M5590 Automatic Shrinkage Rate Marker is mainly used for samples such as laboratory fabrics, leathers and ready-made clothes. It can mark according to the required graphics. This product replaces manual marking, which is more efficient, accurate and safe.
[Technical Parameter]：
| Power Supply | AC 220V 1.2kW |
| Printhead Quantity | One Printhead |
| Accuracy | ±0.1mm |
| Supported Graphics Formats | UD6 |
| Supported Software | TroCut CAD |
| Supported Computer Systems | Windows (Window XP, Vista, Win7, Win8, Win10) Operating System |
| Effective Working Size | 900mm×550mm |
| Marking Materials | Leather Material, Genuine Leather, Paper |
| Output Port | USB Drive |
| Workbench Surface | Fixed Platform |
| Operating Voltage | 220V±10% |
| Workbench Surface Mat | 4mm Fibrous Mat |
| Electrical Accessories | 24V and 5V Power Supply |
| Consumables | Ink |
| Overall Power Consumption | ≤2.0kWh |
| Overall Dimensions | 700×1050×550mm |
